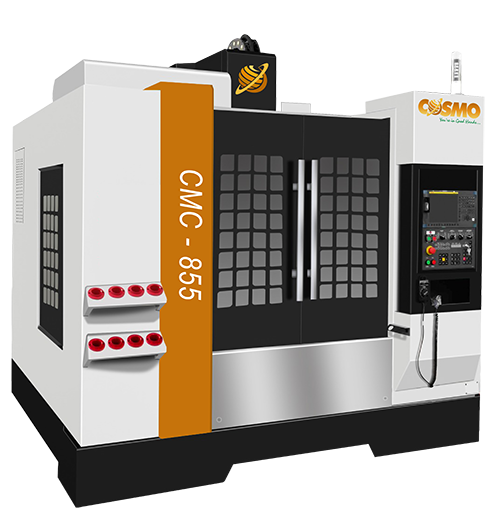

Vertical Machining Center
New generation Vertical Machining Centers are incorporate a wide range of enhancements and available with a myriad of options to choose from.
Advantage at a Glance
- High Rigidity Unity Structure
- Linear Guideways
- Wterproof working light
- Copper pipes for lubricaiton to long run
- Multi compartment design
- Tool Rack at Left side
- Assembly measurement
- Choice for Box / Linear guidways
Model |
Unit |
CMC 856 |
CMC 966 |
CMC1166 |
Travel |
|
|||
X axis |
MM |
800 |
900 |
1100 |
Y axis |
MM |
550 |
600 |
600 |
Z axis |
MM |
600 |
600 |
600 |
Spindle nose to table |
MM |
120-670 |
120-720 |
100-700 |
Spindle center to column |
MM |
595 |
655 |
655 |
Table |
|
|||
Table size |
MM |
1000x550 |
1000x600 |
1200x600 |
Table surface (T slot) |
NO |
5-18T x100 |
5-18T x100 |
5-18T x100 |
Table Max. load |
KG |
800 |
900 |
1000 |
Spindle |
|
|||
Spindle speed(Belt) |
RPM |
8000 |
8000 |
8000 |
Spindle motor power |
KW |
7.5/11 |
7.5/11 |
11/15. |
Spindle taper |
|
BT40 |
BT40 |
BT40 |
Axes Rapid and Feed Rate |
|
|||
XYZ Rapid |
M/Min |
36/36/24 |
36/36/24 |
30/30/24 |
XYZ feed |
M/Min |
01-10* |
01-10* |
1-10* |
XYZ Servo power |
KW |
1.8/1.8/3 |
1.8/1.8/3 |
3/3/3. |
ATC |
|
|||
Mode |
|
Twin Arm |
Twin Arm |
Twin Arm |
Tool shank type |
|
BT40 |
BT40 |
#40 |
No. of tools |
NO |
24 |
24 |
24 |
ATC time (T-T) |
SEC |
2 |
2 |
1.8 |
Max. tool length |
MM |
300 |
300 |
300 |
Max. tool weight |
KG |
7 |
7 |
7 |
Max. tool Dia. |
MM |
80 |
80 |
80 |
(No adjacent) |
MM |
120 |
120 |
120 |
Accuracy |
|
|||
Positioning X/Y/Z |
MM |
0.005 |
0.006 |
0.006 |
Repeatability X/Y/Z |
MM |
0.003 |
0.004 |
0.004 |
Power requirement |
|
|||
Power capacity |
KVA |
20 |
20 |
25 |
Dimensions |
|
|||
Length |
MM |
2600 |
2600 |
3300 |
Width |
MM |
2400 |
2300 |
2300 |
Machine height |
MM |
2550 |
2600 |
2600 |
Weight |
KG |
5500 |
7000 |
7500 |
