With over 35+ installations all over India, Atom series’s successful ranges can perform all micro grinding process on flat surface, profile, rod, machine tool, die mould, mechanical precision components. We have Basic, Prime, Diemould, Premium series which contains grinding basic manual model, NC model, CNC model and Die Mould dedicated model.

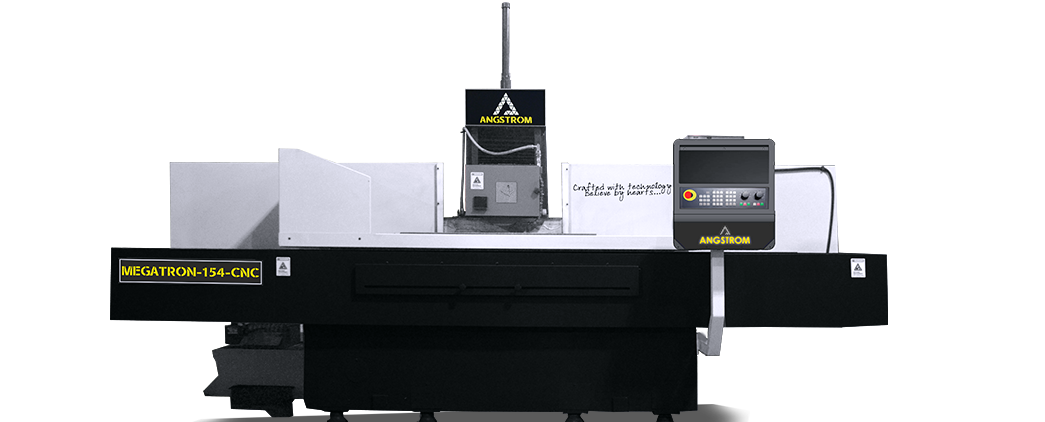

High Precision Surface Grinding Machine

Table crries out longitudinal traverses only. This means that the grinding area is at all times fully supported by the slideways of the grinding area is at all times fully supported by the slideways of the front bed , even when the table is in its end positions. The column carries out cross-traverses only. This means that traverse guiding system is always uniformly supported by the V and flat slideways of the rear bed , regardless of column position. The spindle head only carries out vertical traverse. This means that the grinding wheel is always at the same distance from the vertical slideways regardless of working height, which in turn, ensures absolute parallelism between grinding wheel and work table.

Machine Type	Unit	ATOM 63	ATOM 84	ATOM 115	ATOM 136	ATOM 157
Grinding Area ( L x W )	mm	600x300	800x400	1100x500	1300 X 600	1500 X 700
Longitudal Travel ( X Axis)	mm	650	850	1150	1350	1550
Cross Travel ( Z Axis)	mm	305	400	510	630	730
Distance table Surface to spindle center	mm	400	530	530	650 (Opt-800)	650 (Opt-800)
Grinding Spindle drive	kW	2.2	4	5.5 (Opt-7.5)	7.5 (Opt-60)	11
Grinding Wheel Dimensions	mm	200 x 20 x 50.8	300 x 50 x 50.8	350 x 65 x 127	350 x 65 x 127	400 x 100 x 127
Machine Dimension [L x W x H(max)]	mm	2600 x 2000 x 2300	3400 x 2300 x 2400	4300 x 2600 x 2500	4700 x 2600 x 2500	5500 x 3000 x 2800
Machine Weight (approx)	kg	2100	3500	5000	6500	7500
