Machine Highlights

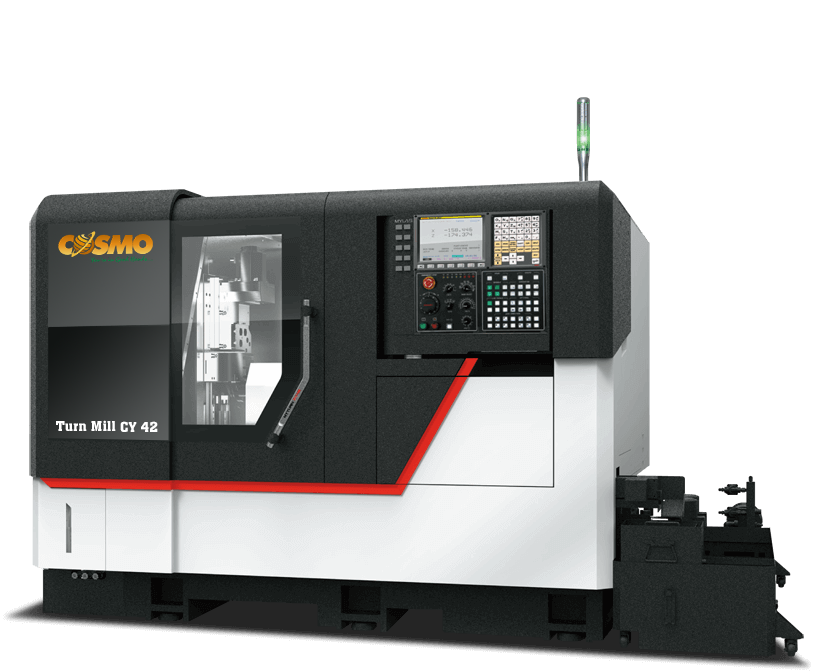

Capabilities: This multi-tasking turning center is an advanced machine designed to process precision complex parts in one setup.
Power & Versatility: It has Double Spindles, a VDI/BMT 12 station Turret and a 2nd Y-Axis for back machining with 14 tools for a total capacity of up to 38 tools. This solution with superimposed cutting is a powerful combination of precision and two Y-axes for machining of complex workpieces with extremely fast cycle times.

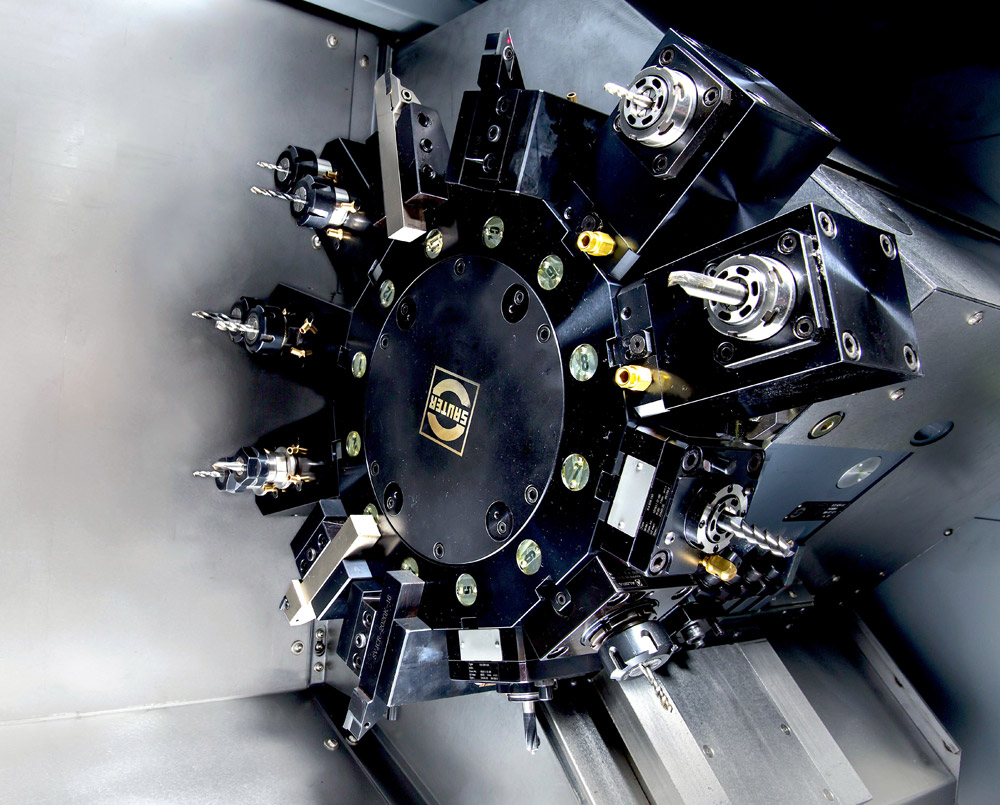

Front Machining: BMT45 12-Stations, Up to 24 tools, 7.5/11 kW Spindle Power, 55 mm Through Hole.
Back Machining: Gang Tools Slide: 14 Tools, 3 Cross Live Tools, 3 Face Live Tools, 3 OD & 5 ID Tools.

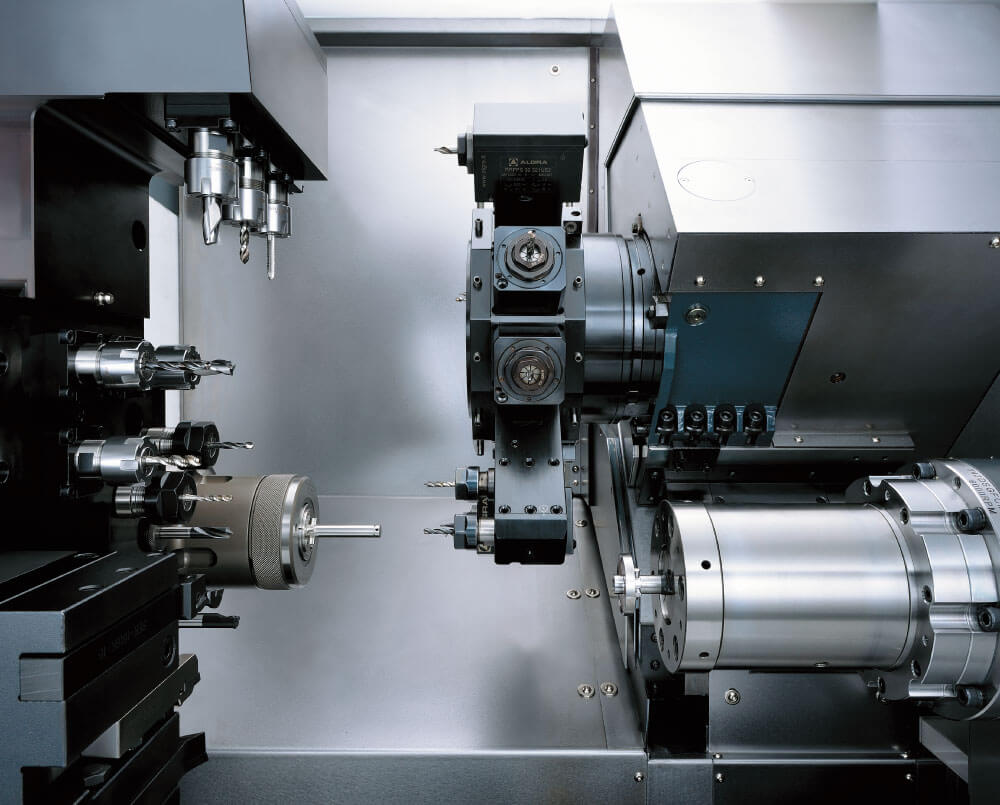

Twin Spindle & 2 Y-Axes-Gang Tools/ Turrets It has Double Spindles, a VDI/BMT 12 station Turret and a 2nd Y-Axis for back machining with 14 tools for a total capacity of up to 38 tools. This solution with superimposed cutting is a powerful combination of precision and two Y-axes for machining of complex workpieces with extremely fast cycle times.

Machine Specification

CY42 Main Spindle

  • Capacity
    Chuck Type (typr) DIN173E
    Max. Turning Length of Bar (mm) 135
    Max. Turning Length (mm) 350
    Max. Turning Diameter of Bar (mm) Ø42
    Max. Turning (mm) 150
  • Travel
    X1 / X2 Axis Travel (mm) 175 (X1)
    Z1 / Z2 Axis Travel (mm) 450 (Z1)
    Y1 / Y2 Axis Travel (mm) ±35
    X1 / X2 Axis Rapid Traverse (M/min) 18 (X1)
    Z1 / Z2 Axis Rapid Traverse (M/min) 24 (Z1)
    Y1 / Y2 Axis Rapid Traverse (M/min) 18 (Y1)
  • Spindle
    Spindle Nose (type) A2-5
    Spindle Speed (rpm) 50 - 5000
    Spindle Motor (cont./30min) (kW) 7.5 / 11
  • Turret
    No.of Tool Station (set) 12
    Size of O.D Tool Holder (mm) 20
    Size of I.D Tool Holder (mm) 25
    Turret Indexing Time (sec) 0.1 - 0.3
    Spindle Speed of Tool (rpm) 6000
    Tool Spindle Motor (cont/30min) (kW) 2.2 / 3.7
    Tool Spindle Torque (cont/30min) (mm) 14 / 23.5
  • Gang Tool Slide
    No.of Tool Stations (set) 14
    Size of O.D. Tool Holder (mm) 16
    I.D. of Boring Bar Holder (mm) 20
    Spindle Speed of Tool (rpm) 5000
    Tool Spindle Motor (kW) 2.2kw
    Tool Spindle Torque (Nm) 22
  • Tank Capacity
    Coolant Tank Capacity (Liter) 250
  • Dimension
    Length of Machine (mm) 2600
    Wideth of Machine (mm) 1950
    Height of Machine (mm) 1800
    Weight of Machine (Kg) 5350
  • Floor Area (Standard Equipment)
    (mm) 4900x3640
  • Power Supply
    (Kva) 53

Sub spindle

  • Capacity
    Chuck Type (typr) DIN173E
    Max. Turning Length of Bar (mm) 60
    Max. Turning Length (mm) -
    Max. Turning Diameter of Bar (mm) Ø32
    Max. Turning (mm) 135
  • Travel
    X1 / X2 Axis Travel (mm) 240 (X2)
    Z1 / Z2 Axis Travel (mm) 500 (Z2)
    Y1 / Y2 Axis Travel (mm) 266(Y2)
    X1 / X2 Axis Rapid Traverse (M/min) 18 (X2)
    Z1 / Z2 Axis Rapid Traverse (M/min) 24 (Z2)
    Y1 / Y2 Axis Rapid Traverse (M/min) 30(Y2)
  • Spindle
    Spindle Nose (type) A2-4
    Spindle Speed (rpm) 50 - 5000
    Spindle Motor (cont./30min) (kW) 3.7 / 5.5
  • Gang Tool Slide
    No.of Tool Stations (set) 14
    Size of O.D. Tool Holder (mm) 16
    I.D. of Boring Bar Holder (mm) 20
    Spindle Speed of Tool (rpm) 5000
    Tool Spindle Motor (kW) 2.2
    Tool Spindle Torque (Nm) 22
