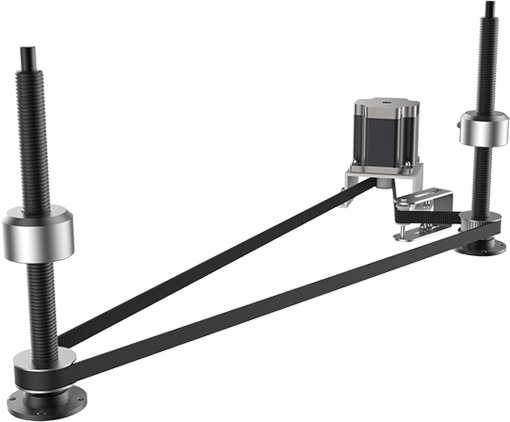

Electronic lifting
The machine can automatic adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.

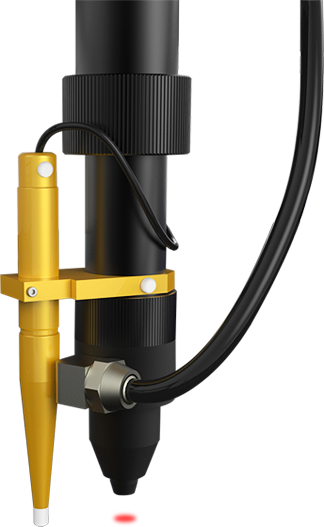

Automatic Focusing
Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.
Technical Parameters
Laser - Type | Sealed CO2 laser tube |
Laser Power | 80w 100w 130W (optional) |
Working Area | 1600mm×1000mm |
Cutting Speed | 0-36000mm/m |
Work Platform | Crawler type work platform |
Working Speed | Adjustable |
Position Accuracy | ±0.1mm |
Control System | DSP DSP control system in USB mode |
Cooling Mode | Constant temperature water-cooling |
Working Voltage | AC220V±5% / 50HZ |
Graphic Format Supported | AI BMP PLT DXF DST |
Operating Temperature | 0°C-40°C |
Operating Humidity | Free of condensed water |
Gross Power | ≤2000W |
